Tubeless Steam Boiler, STAR ELEVATOR LTD.

Tubeless-Steam-Boiler-front-side-STAR-ELEVATOR-LTD.
Roll over image to zoom in
Click to open expanded view

In stock

Technical Parameter

Model Rated capacity(t/h) Rated pressure (Mpa) Rated temperature(℃) feed temperature(℃) Thermal efficiency(%) Exhaust temperation(℃) Fuel comsumption max transportation weigh(t)
light diesel oil(kg/h) natural gas(Nm³/h)
WNS0.5-1.0/1.25/1.6-YQ 0.5 1.0/1.25/1.6 184/194/204 20/104 ＞98 60-75 32.5 35.7 3.5
WNS1-1.0/1.25/1.6-YQ 1 1.0/1.25/1.6 184/194/204 20/104 ＞98 60-75 64.5 70.1 5.5
WNS2-1.0/1.25/1.6-YQ 2 1.0/1.25/1.6 184/194/204 20/104 ＞98 60-75 129.3 140.3 8
WNS3-1.0/1.25/1.6-YQ 3 1.0/1.25/1.6 184/194/204 20/104 ＞98 60-75 192.9 212.1 10.7
WNS4-1.0/1.25/1.6-YQ 4 1.0/1.25/1.6 184/194/204 20/104 ＞98 60-75 258.2 283.4 11.6
WNS6-1.0/1.25/1.6-YQ 6 1.0/1.25/1.6 184/194/204 20/104 ＞98 60-75 388.6 424.2 17.5
WNS8-1.0/1.25/1.6/2.5-YQ 8 1.0/1.25/1.6/2.5 184/194/204/226 20/104 ＞98 60-75 514.6 566.3 22.5
WNS10-1.0/1.25/1.6/2.5-YQ 10 1.0/1.25/1.6/2.5 184/194/204/226 20/104 ＞98 60-75 641.7 707.8 26.8
WNS15-1.0/1.25/1.6/2.5-YQ 15 1.0/1.25/1.6/2.5 184/194/204/226 20/104 ＞98 60-75 960.1 1061.7 35.2
WNS20-1.0/1.25/1.6/2.5-YQ 20 1.0/1.25/1.6/2.5 184/194/204/226 20/104 ＞98 60-75 1276.2 1415.8 45.5
Note: Parameter is for reference only, if any changes should follow the factory technical data.

Our Supply Equipment List

Boiler Body
Burner
Control Cabinet
Feed Water Pumps
Circulating Water Pumps
Water Tank
Water Treatment Equipment
Economizer
Induced Fan
Steam header
Chimney
......



Safety boiler



Intelligient control panel of boiler



three pass boiler



industrial gas oil boiler











PRODUCT LIST

YOU MAY ALSO LIKE

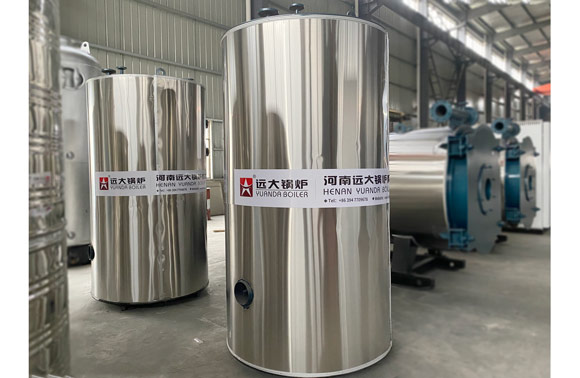

Gas/Lpg/Diesel Boiler Vertical

Gas/Lpg/Diesel Boiler Vertical

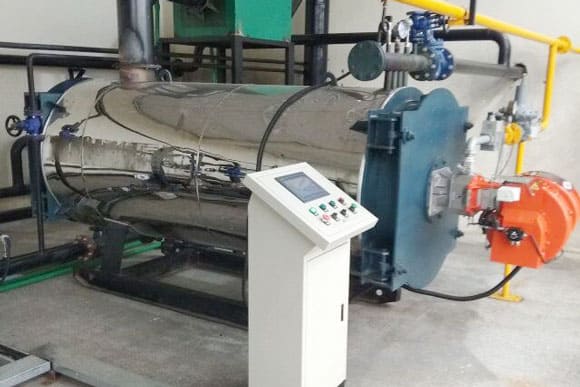

YYQW Gas/Diesel Thermal Oil Boiler

YYQW Gas/Diesel Thermal Oil Boiler

Water Tube Gas Oil Boiler (SZS series)

Water Tube Gas Oil Boiler (SZS series)

Portable Boiler(skid-mounted,container-room)

Portable Boiler(skid-mounted,container-room)

Add to wishlist
Compare
Category:

Gas/Diesel/Oil Powered Boiler

Product capacity: 0.1t/h-50t/h
Working pressure: 0.1Mpa-3.8Mpa 1bar-38bar
Available fuel: Nature gas, LPG, exhaust gas, propane, diesel, heavy oil, waste oil, crude oil, dual fuel
Available industries: For heating, drying, steam turbine, in foods, beverage, textile, paper, feed mill, chemical, edible oil, rice mill, refinery, packaging, laundry, hotel…

Key selling points:10hp-3000hp WNS series horizontal fire tube boiler, package gas LPG oil boiler. Automatic energy-saving gas oil fired shell boiler, high steam quality, high efficiency >98%
